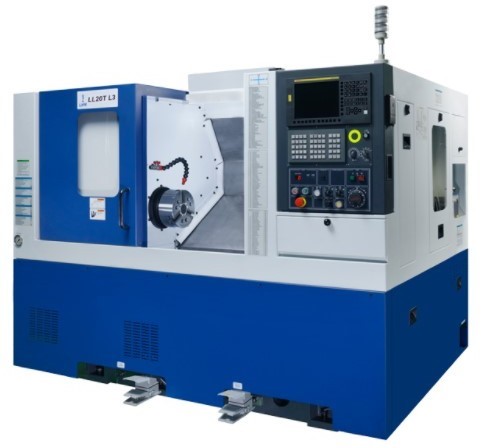

CNC TURNING CENTRE-LMW LL20L5

DESCIPTION	UNIT	LL 20T L3
CAPACITY
Swing Over bed	mm	510
Chuck dia. Max	mm	210
Max. Turning dia	mm	320
Max. Turning Length	mm	310
Admit Between Centres	mm	440
SPINDLE
Spindle nose	type	A2-6
Hole through spindle	mm	61
Spindle speed	rpm	3500
Spindle motor power	kW	9/11
TURRET
No. of stations	nos	8
Tool shank size	mm	25 x 25
Max. Boring bar dia	mm	40
Turret Indexing	type	Hydraulic
Turret indexing time	sec	0.8 to 1

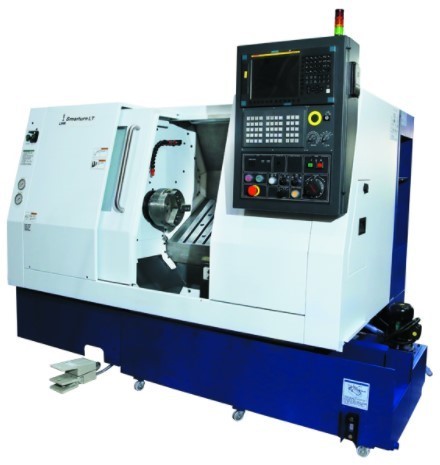

CNC TURNING CENTRE- LMW - SMARTURN

DESCIPTION	UNIT	SMARTURN
CAPACITY
Swing Over bed	mm	480
Chuck dia. Max	mm	169
Max. Turning dia	mm	200
Max. Turning Length	mm	262
Admit Between Centres	mm	345
SPINDLE
Spindle nose	type	Flat (Dia: 140)
Hole through spindle	mm	53
Spindle speed	rpm	4500
Spindle motor power	kW	Siemens-7/10.5 Fanuc -5.5/7.5 Mitsubishi-5.5/7.5 Delta-5.5/7.5
FEED
Inclination of Carriage	Deg	30°to Horizontal Plane
Travel X - Axis	mm	105
Travel Z-Axis	mm	320
Rapid traverse (X/Z)-Axes	m/min	20/20

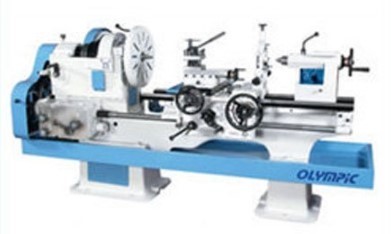

OLIMPIC make 7 ½ Feet Lathe

Specification	Description
Chuck dia. Max	14 inch
Bore Spindle	250 mm
Bed Length	7.5 Feet

GEEDEE WEILER LATHE RDU 38 - 2 Nos

Specification	Description
Spindle bore	38 mm
12 Spindle speeds	125-2800 rpm
Distance between centers	380 mm
Center height	125 mm

MANFORD TOOL ROOM MILLING MACHINE

Specification	Description
TABLE	1000 X 400 X 500 mm
Variable speed	3 HP
Spindle Motor	220/440V, 3 phase

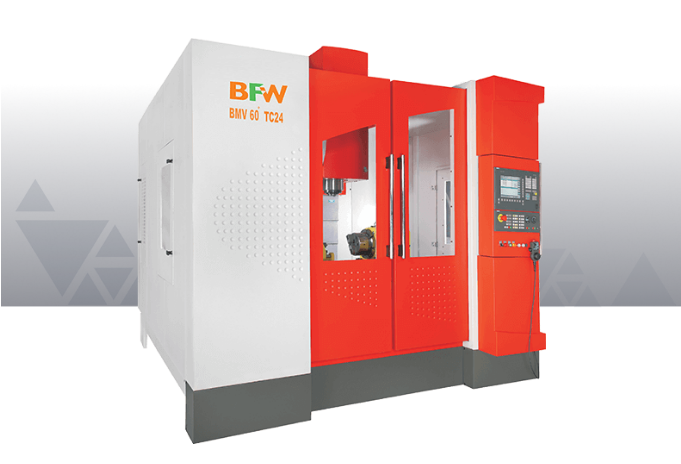

VMC

Specification	Description
Travel	X1050, Y610, Z610
Spindle Speed	6000 RPM
No of Axis	4

In-House Inspection Facility Includes

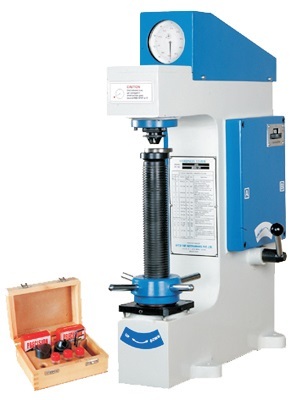

Rockwell Hardness Tester

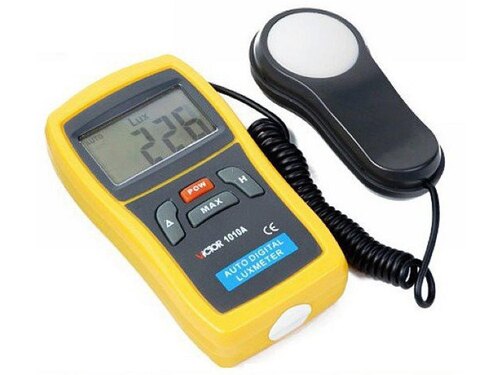

Lux Meter

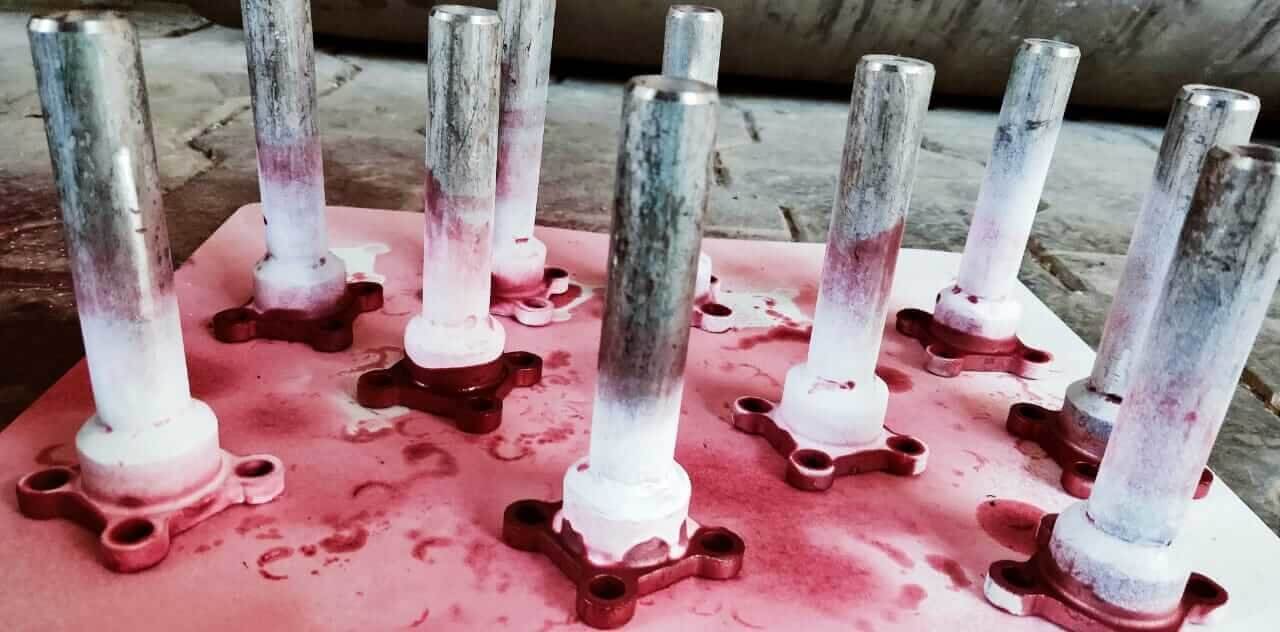

Liquid Penetrant Testing

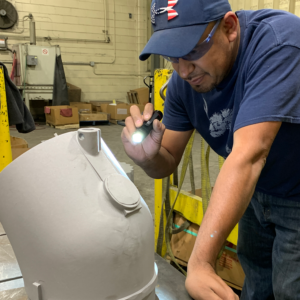

Visual Testing
